OPEN-SOURCE SCRIPT
Cập nhật Aroon | TR
🎯 Overview
Aroon | TR is a versatile trend-following indicator that measures the time elapsed since price recorded its highest high and lowest low over a specified period. Developed by Tiagorocha1989, this enhanced version of Tushar Chande's classic Aroon indicator offers multiple visualization modes, customizable moving averages, and comprehensive visual features to help traders identify trend direction, trend strength, and potential reversal points with greater precision.
🔧 How It Works
The Aroon indicator consists of two lines: Aroon Up and Aroon Down. These lines measure how many periods have passed since price recorded a high or low within the lookback period. The relationship between these lines determines trend direction and strength.
Core Calculation Logic:
The indicator calculates the Aroon lines using the following logic:
Aroon Up: Measures the number of periods since the highest high within the lookback period
Formula: 100 × (Length - Periods Since Highest High) / Length
Aroon Down: Measures the number of periods since the lowest low within the lookback period
Formula: 100 × (Length - Periods Since Lowest Low) / Length
Both lines oscillate between 0 and 100, with:
Values above 50 indicating a recent high/low (strong trend)
Values approaching 100 indicating a very recent high/low (very strong trend)
Values approaching 0 indicating no recent high/low (weak or reversing trend)
The indicator also calculates Aroon as the difference between Aroon Up and Aroon Down (Aroon Up minus Aroon Down), creating an oscillator that oscillates around zero:
Positive Aroon values → Bullish momentum (Aroon Up above Aroon Down)
Negative Aroon values → Bearish momentum (Aroon Down above Aroon Up)
✨ Key Features
🔹 Multiple Display Modes
Average Aroon Mode: Shows the Aroon oscillator (Aroon Up minus Aroon Down) with signal line, providing a clean, oscillator-style view of trend strength and direction
Normal Aroon Mode: Displays the classic Aroon Up and Aroon Down lines for traditional analysis
Both modes can be combined for comprehensive analysis
🔹 Dual Operating Modes for Signals
Zero Line Mode: Signals occur when the Aroon oscillator crosses above or below the zero line
Aroon MA Mode: Enhanced mode where signals occur when Aroon crosses its own moving average, providing filtered entries
🔹 Flexible Moving Average Selection
Choose from six MA types for the Aroon MA mode:
EMA (Exponential Moving Average) for responsive signals
SMA (Simple Moving Average) for smoother readings
RMA (Rolling Moving Average) for weighted recent data
WMA (Weighted Moving Average) for customizable weighting
VWMA (Volume-Weighted Moving Average) incorporating volume
HMA (Hull Moving Average) for reduced lag
🔹 Customizable Aroon Parameters
Length Aroon: Lookback period for Aroon calculation (default 6)
Shorter periods (like 6) provide more responsive signals
Longer periods (like 14-25) provide smoother, more reliable signals
🔹 Customizable Color Themes
Eight distinct color schemes to match your charting preferences:
Classic – Green for bullish, Red for bearish
Modern – White for bullish, Purple for bearish
Robust – Amber for bullish, Maroon for bearish
Accented – Violet for bullish, Pink for bearish
Monochrome – Light gray for bullish, Dark gray for bearish
Moderate – Green for bullish, Red for bearish
Aqua – Blue for bullish, Orange for bearish
Cosmic – Pink for bullish, Purple for bearish

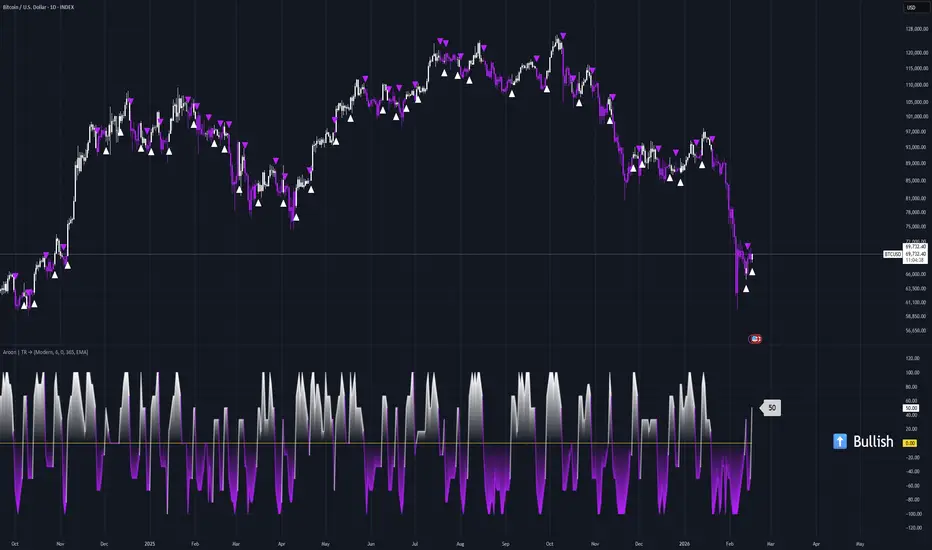

🔹 Comprehensive Visual Feedback
Aroon Oscillator: Colored line showing the difference between Aroon Up and Aroon Down
Signal Line: Yellow line for MA-based signals
Gradient Fill Zones: Clear visualization of extreme readings (+100 to -100)
Dynamic Zone Fills: Semi-transparent fills showing when Aroon is above or below the signal line
Aroon Up and Aroon Down Lines: Optional display of classic Aroon lines
Color-Coded Candles: Bars reflect current trend direction based on Aroon Up/Aroon Down relationship
Signal Markers: Triangle up/down symbols at crossover points
Live Value Display: Floating labels showing current values for each enabled component
Trend Table: Bullish/Bearish status displayed on the chart
🔹 Ready-to-Use Alerts
Built-in alert conditions trigger LONG signals when Aroon Up crosses above Aroon Down, and SHORT signals when Aroon Up crosses below Aroon Down.
⚙️ Settings Summary
Color Choice: Select from eight visual themes (Default: Classic)
Length Aroon: Lookback period for Aroon calculation (Default: 6)
Average Aroon: Toggle to show the Aroon oscillator (Aroon Up minus Aroon Down) (Default: Enabled)
Aroon: Toggle to show classic Aroon Up and Aroon Down lines (Default: Disabled)
Entry/Exit Signal: Choose between zero line or Aroon MA mode (Default: Zero Line)
Length MA: Moving average period for Aroon MA mode (Default: 365)
Aroon MA Type: Moving average method for signal line (Default: EMA)
📈 Practical Applications
🔹 Trend Direction Identification
The primary use of the Aroon system is identifying trend direction:
Aroon Up above Aroon Down → Bullish trend
Aroon Down above Aroon Up → Bearish trend
The wider the separation, the stronger the trend
🔹 Trend Strength Measurement
The actual values of Aroon Up and Aroon Down indicate trend strength:
Values above 70 → Strong trend (recent high/low)
Values between 50-70 → Moderate trend
Values below 30 → Weak trend or consolidation
Both lines below 50 → Possible ranging market
🔹 Trend Initiation Detection
When Aroon Up crosses above Aroon Down from below, it suggests a new uptrend is beginning. Conversely, when Aroon Down crosses above Aroon Up, it suggests a new downtrend is beginning.
🔹 Trend Exhaustion Signals
When Aroon Up is very high (above 80-90) and begins to turn down while Aroon Down remains low, it may indicate an uptrend is tiring. The opposite signals downtrend exhaustion.
🔹 Consolidation Identification
When both Aroon lines are low (below 30-40) and moving horizontally, it suggests a consolidation phase with no clear trend.
🔹 Aroon Oscillator Analysis
The Aroon oscillator (Aroon Up minus Aroon Down) offers additional insights:
Positive values indicate bullish dominance
Negative values indicate bearish dominance
Crossovers of the zero line confirm trend changes
Crossovers of the moving average provide filtered signals
🔹 Multiple Timeframe Confirmation
Compare Aroon readings across different timeframes:
Higher timeframe Aroon confirms primary trend direction
Lower timeframe Aroon identifies entry timing
🎯 Ideal For
✅ Trend Traders seeking early identification of new trends
✅ Swing Traders wanting to capture trend initiations and reversals
✅ Range-Bound Traders identifying consolidation phases
✅ System Developers needing reliable trend direction signals
✅ Multi-Timeframe Analysts comparing trend strength across periods
📌 Key Takeaways
Time-Based Approach: Unlike most indicators that use price or volume, Aroon uniquely measures time since significant highs and lows
Multiple Display Modes: Choose between classic Aroon Up/Down lines or the Aroon oscillator based on your analysis style
Dual-Mode Signal Generation: Zero line crossovers for classic signals or MA-smoothed signals for filtered entries
Rich Visual Feedback: Color themes, gradient fills, candles, and floating labels provide immediate market awareness
Alert-Ready: Built-in alerts for trend change signals when Aroon Up crosses Aroon Down
⚠️ Important Notes
The Aroon indicator works best in trending markets and can produce false signals in ranging conditions. The default length of 6 makes this version very responsive to recent price action, ideal for shorter-term trading. For longer-term analysis, consider increasing the length to 14-25. The 365-day MA default in Aroon MA mode is designed for longer-term trend context on daily charts. Both lines below 50 often indicate consolidation - consider avoiding trend signals in these conditions. Always combine with proper risk management and additional confirmation for best results.
Disclaimer: This indicator is provided for educational and informational purposes only. Past performance is not indicative of future results. Always conduct thorough testing and align with your risk management strategy before live deployment.
