X Feigenbaum

15 thg 10

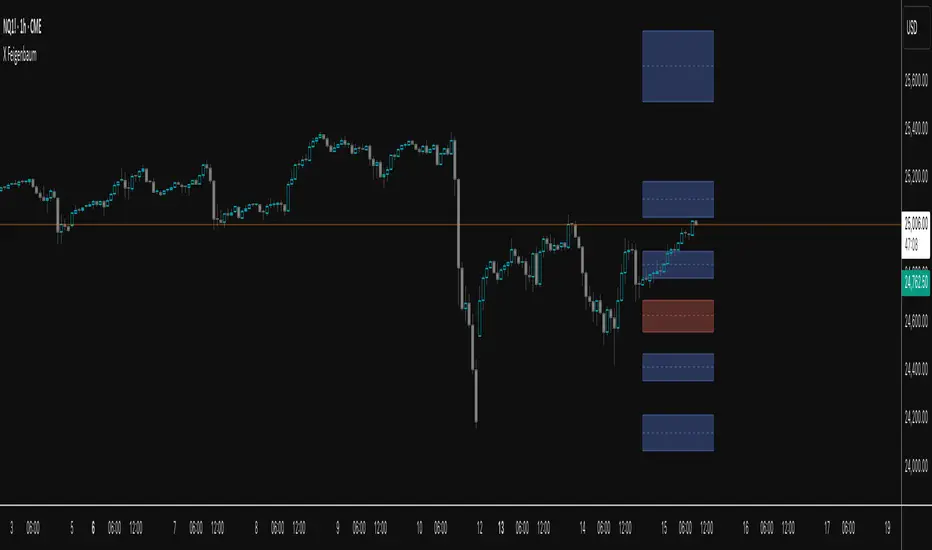

plots forward “projection zones” derived from a user-defined Feigenbaum Deterministic Range (FDR). Starting from two anchor prices (p01a, p01b) that define the initial condition, the tool computes successive expansion zones above and below that range using fixed scale factors. Each zone is rendered as a shaded box with optional edge outlines, an auto-midline, and an optional label—giving you an at-a-glance map of where price may propagate next.

This indicator is a visual framework, not a signal generator. It’s meant to be combined with your existing structure/flow reads (order flow, VWAPs, ORs, HTF levels, etc.) to plan scenarios, targets, and invalidation.

Key ideas (context)

Initial condition → expansions: You define a deterministic base range (FDR) from which the script projects outward “echoes.”

Bidirectional mapping: Zones are drawn symmetrically as +1, +2, +3, +4 (above) and −1, −2, −3, −4 (below) to reflect potential propagation in either direction.

Diminishing confidence with distance: Farther zones are for scenario planning/targets; nearer zones are more actionable for risk placement and management.

How the levels are built

Feigenbaum Deterministic Range (FDR):

Inputs p01a and p01b define the initial range (FDR = p01a − p01b).

Category “F Range” draws that base box.

Projection Zones:
The script computes zone pairs by offsetting from the initial range using fixed multipliers of FDR. In code, these are the pre-set coefficients:

±1: 0.6714 and 1.5029

±2: 2.5699 and 3.6692

±3: 6.1398 and 8.3384

±4: 13.2796 and 17.6768
Each zone is two prices (a, b) forming a band; the same logic mirrors below the range for the negative side.

Rendering & midlines:

Each enabled category draws a filled box from the anchor bar to the right edge (current bar + extend_len).

Optional outlines (solid/dashed/dotted) for top/bottom/left/right edges.

Optional midline (always dashed) bisects each zone for quick reference.

Anchoring & timeframe logic

Anchor refresh: interval1 sets an HTF “clock” (e.g., Daily). On each new HTF bar, all categories re-anchor at that bar’s index so new projections start cleanly with the fresh session/period.

Extend control: extend_len nudges the right boundary beyond the latest bar for label/edge clarity.

Inputs & styling

Settings group:

Anchor 1 Timeframe (e.g., D) defines the refresh cadence.

Label toggles: show/hide, size, text color, and background.

Feigenbaum DR group:

Enable the base F range, set p01a/p01b, choose fill/line colors, outline style, and the mid toggle.

Ranger Factors groups (Zones ±1…±4):

Each zone can be enabled/disabled, inherits its computed prices, and has independent fill/line color, outline style, and mid toggle.

Practical usage

Scenario mapping: Use +/−1 zones for near-term impulse tracking and intraday targets; treat +/−3 and +/−4 as stretch objectives or “if trend persists” waypoints.

Confluence first: Prioritize trades when a Feigenbaum zone aligns with a known liquidity pool, session level (e.g., OR, ETH/RTH AVWAP), HTF pivot, or key option-derived levels.

Risk & invalidation: The base FDR and nearest zone edges provide clean invalidation references and partial-take structures.

Notes & limitations

The coefficients are fixed in this version (you can expose them as inputs if you want to calibrate per market).

Projections are descriptive, not predictive; treat farther zones as lower-confidence context.

Because anchors reset on the selected HTF, choose interval1 consistent with your playbook (e.g., Daily for RTH framing, Weekly for swing maps).

Output summary

Boxes: FDR (base), Zones +1/−1, +2/−2, +3/−3, +4/−4

Edges: Optional top/bottom/left/right per zone (styleable)

Midlines: Optional dashed mid per zone

Labels: Optional, style-controlled, positioned just beyond the right edge

15 thg 10

Phát hành các Ghi chú

active zone visibility feature

15 thg 10

Phát hành các Ghi chú

clean up

15 thg 10

Phát hành các Ghi chú

clean up

15 thg 10

Phát hành các Ghi chú

clean up

15 thg 10

Phát hành các Ghi chú

code fix

15 thg 10

Phát hành các Ghi chú

clean up

21 thg 10

Phát hành các Ghi chú

added values and removed labels

22 thg 10

Phát hành các Ghi chú

code clean up

23 thg 10

Phát hành các Ghi chú

cleaned up settings page
